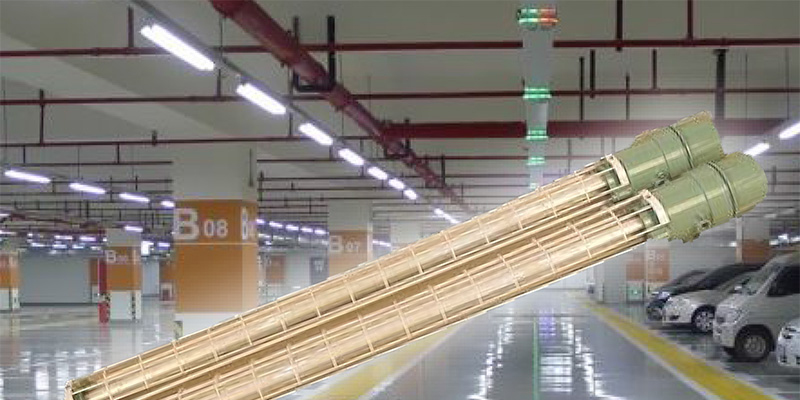

Flameproof cum weatherproof Double Led tube light fitting
Product Features
- - Protection IP: IP-65
- - Input Power Supply: 100-300 VAC
- - Mounting Type: Wall Mounting
- - Material: Cast Aluminium Alloy LM-6
- - Rating: Double x 36W X 4' Led (Replace to Double x ro Watt x W' tube light)
- - Enclosure: Flameproof (Ex-d) as per IS/IEC60079-1:2007 suitable for installation in hazardous location zone - 1&2
- - Dimension: 1485 x 355MM & (1485X178MN)
- - Glass: Heat and impact resistance clear toughend zone - 1 & 2
- - Gasket: Neoprene gasket
- - Entry: 2 Nos of 3/4 ET cable entry
- - Wireguard: M.S. Galvanized white epoxy painted
- - Hardware: High tensile zinc passivated
- - Area Classification: Gas group IIA, IIB & IIC as per IS/IEC 70079-1:2007
- - Finish: Anti corrosive epoxy power coated (631 shade of Is5)
- - Standard: IS/IEC 60079-1:2007
- - Certificate: Approved and certified by CIMFR Dhanbad

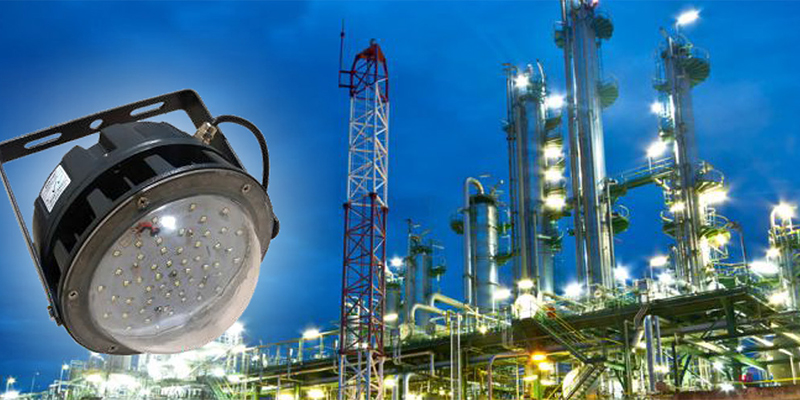

Flameproof cum weatherproof Well Glass light fitting
Product Features
- - Protection IP: IP-65
- - Input Power Supply: 100-300 VAC
- - Mounting Type: Wall Mounting
- - Material: Cast Aluminium Alloy LM-6
- - Rating: 30W, 40W, 60W, 90W, 100W
- - Enclosure: Flameproof (Ex-d) as per IS/IEC60079-1:2007 suitable for installation in hazardous location zone - 1 & 2
- - Glass: Heat and impact resistance clear toughend zone - 1 & 2
- - Gasket: Neoprene gasket
- - Entry: 2 Nos of 3/4 ET cable entry
- - Wireguard: M.S. Galvanized white epoxy painted
- - Hardware: High tensile zinc passivated
- - Area Classification: Gas group IIA, IIB & IIC as per IS/IEC 70079-1:2007
- - Finish: Anti corrosive epoxy power coated (631 shade of Is5)
- - Standard: IS/IEC 60079-1:2007
- - Certificate: Approved and certified by CIMFR Dhanbad
Bonum Bulkhead Light
Product Features
- - Light Type: Halogen, LED, Fluorescent
- - IP Rating: IP-66
- - Base Type: E27
- - Protection Zone: Zone 1, 2
- - Variation: 160 WMLL, 125 WMV, 2X23 WCFL, 2X26 WCFL
- - Dimensions: 1255 MM X 260 MM
- - Protection Type: Ex-d
- - Gas Group: IIA, IIB
Flameproof Wall Mounting Fan
Product Features
- - Protection IP: IP-65
- - Mounting Type: Wall Mount
- - Size: 12" to 30"
- - Color: Epoxy Light Grey
- - Power: 230V AC & 440V AC
- - Electric Current Type: AC
- - Number of Blades: 3
- - Air Delivery: 900 RPM & 1440 RPM
- - Area Classification: Zone 1, 2
- - Elect. Rating: 18" / 24" / 36"
- - Gas Group: IIA, IIB
- - IP Protection: IP 55
- - No of Blade: 3
- - Protection: IP-55 as per IS/IES 60034-5:2000
- - Enclosure: Ex-D as per IS/IEC 600079-1:2007, Suitable for installation in hazordus location Div-1 & 2 as per IS-5572 (Part-1)
- - Area Classification: Gas group IIA, IIB as per IS/IEC 60079-1:2007
- - Materials: Cast iron grade FG 220 as per ISO 185
- - Finish: Epoxy light grey shade 631 as per IS:5
- - Approval: CIMRF-Dhanbad
- - Standard: IS/IEC 60079-1-2007
- - Gas Group: IIA & IIB
- - Zone: 1 & 2
Explosion Proof Multiway Junction Box
Product Features
- - Protection IP: IP-65
- - Material: Cast Aluminium Alloy LM-6
- - Dimensions: 600 MM x 600 MM x 200 MM
- - IP Rating: IP55
- - Finish: Anti corrosive epoxy powder coated (63) shade of Is5
- - Earthing: 2 Nos. of external and one no. of internal
- - Gas Group: IIA, IIB & IIC
- - Protection Type: Ex-d
- - Protection Zone: Zone 1, 2
- - Color: Epoxy power coating
- - Size: 4" X 4 " to 700 X 500
- - Material: Aluminium alloys Lm-6, Aluminium die cast, Aluminium Alloy
- - Dimensions: 250 X 350 MM
- - IP Rating: IP55, IP65
